Reverse proxies using HTTPD config

[jarred-Awesome]

Hey Everyone,

My Directadmin is set up on a server that uses Apache, as opposed to NGIN. I can't seem to find a good guide on how to set up a reverse proxy using Apache.

Ideally I want the settings to look like this:

<VirtualHost 123.456.78:80>
    ServerName subdoamin.mydomain.com
    ProxyPass / http://123.456.78:8080/
    ProxyPassReverse / http://123.456.78:8080/
</vitualHost>

<VirtualHost 123.456.78:443>
    ServerName subdoamin.mydomain.com
    ProxyPass / http://123.456.78:8080/
    ProxyPassReverse / http://123.456.78:8443/
</vitualHost>

But I can only figure out how to do this:

<VirtualHost 123.456.78:80>
    ServerName subdoamin.mydomain.com
    ProxyPass / http://123.456.78:8080/
    ProxyPassReverse / http://123.456.78:8080/
    ServerName subdoamin.mydomain.com
    ProxyPass / http://123.456.78:8443/
    ProxyPassReverse / http://123.456.78:8443/
</vitualHost>

<VirtualHost 123.456.78:443>
    ServerName subdoamin.mydomain.com
    ProxyPass / http://123.456.78:8080/
    ProxyPassReverse / http://123.456.78:8080/
    ServerName subdoamin.mydomain.com
    ProxyPass / http://123.456.78:8443/
    ProxyPassReverse / http://123.456.78:8443/
</vitualHost>

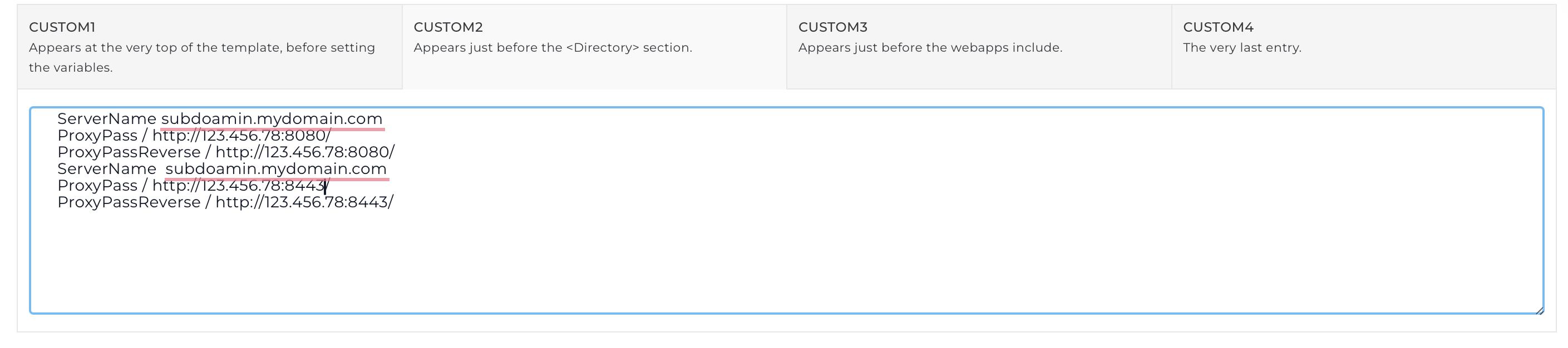

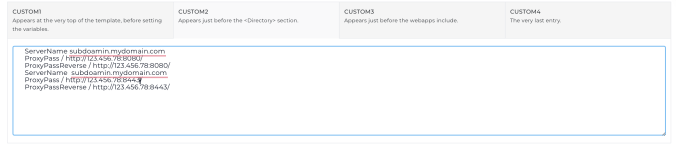

I attahed a photo of how I did it.

Can someone explain the proper way to do this?

Thanks



[zEitEr]

Hello,

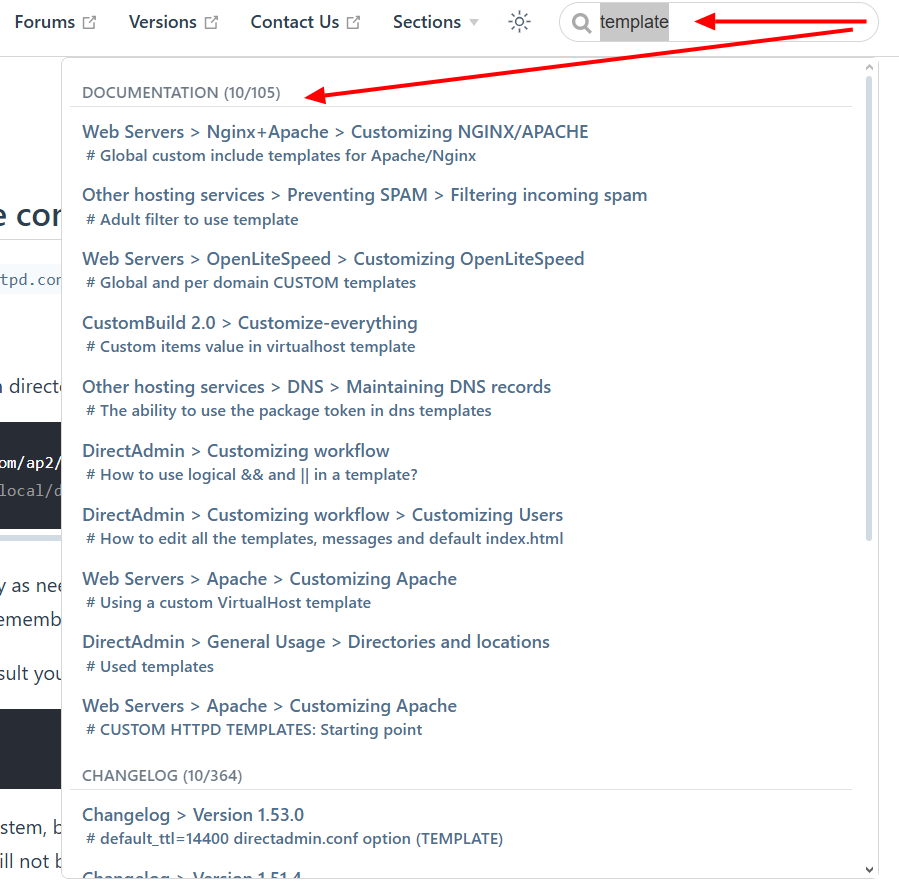

Here is an example: https://docs.directadmin.com/directadmin/general-usage/accessing-da-panel.html#apache Will it help you?



[jarred-Awesome]

Maybe, if there is documentation of how those scripts work?

This is an example, but no link to what the actual scripts are doing.

Sorry, I am very new to direct admin



[zEitEr]

Which scripts? If you want to learn what are those directives mean, then you need to read official docs from Apache website.
